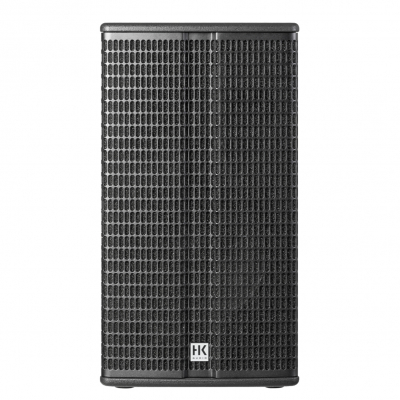

HK AUDIO LINEAR 3 112XA
CHF849.00
HK AUDIO LINEAR 3 112XA
- Description
- Additional information
- Brand
Description
L3 112 XA
Active 12?/1? cabinet housed in a multipurpose enclosure. The clever design of the LINEAR 3 112 XA allows it to excel as a front PA with plenty of punch, or as an assertive stage monitor.
- Can be used as a mid/high unit or as an onstage monitor
- Packs the muscular bi-amped punch of a 1,200 W class D power amp
- Beautifully balanced, high-definition audio
- 135 dB SPL?that”s plenty of sound pressure for audiences of up to 500 (with the suitable L SUB 1500 A or L SUB 1800 A subwoofers)
- No need for sophisticated audio skills: advanced DSP technology serves up top-notch sound every time
- Intelligent Multiband Limiter ensures tonal integrity at every volume level
- FIR crossover filtering for transparent midrange
- Plenty of sound-shaping options with four EQ presets?Bass Boost, Flat (LF), Flat (MHF) and Contour
- Very low total harmonic distortion, so no listening fatigue
- System”s sound is easy to control and shape, even from the stage
- On-target, directional PA aiming to reduce reflections off walls and ceilings
|
Model
|
L3 112 FA
|
| Max SPL peak | 135 dB half space (@ 10% THD) |
| Frequency response +/- 3 dB | 67 Hz – 18 kHz |
| Frequency response -10 dB | 62 Hz – 18 kHz |
| Power Rating | 1200 W |
| Amplifier | Class D – bi-amped |
| Active protection circuits | Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters |
| Low/Mid Speaker | 1x 12″ |
| HF Driver | 1″ |
| Horn characteristics | 90? x 55? CD horn |
| Crossover frequency | 2,3 kHz |
| Connections | 2x XLR Combo In bal., 1x Stereo RCA In, 2 x XLR Thru bal., 1x XLR Mix Out |
| Input Sensitivity | +4 dBu @ Gain center-notched |
| Sensitivity switch | Line/Mic Input A |
| Equalizer | 2 EQ switches: Bass Boost/Flat & Flat/Contour |
| Angles up | 33? |
| Pole mount | HK Audio DuoTilt 3/7 |
| Rigging points | 4x M8 |
| Handles | 1x HK Audio MultiGrip, 1x recessed top handle |
| Enclosure | 16 mm MDF |
| Grille | 2 mm metal grille backed with black acoustic foam |
| Finish | Acrylic enamel, black |
| Optional accessories | Cover, Stereo Pole Add-on M20, Speaker Stand Add-on, Attachment point (AP-8), Tilt-Unit |
| Dimensions (WxHxD) | 39,5 x 66 x 34 |
| Weight | 20,6 kg / 45,5 lbs |
Additional information
| Weight | 23 kg |
|---|
