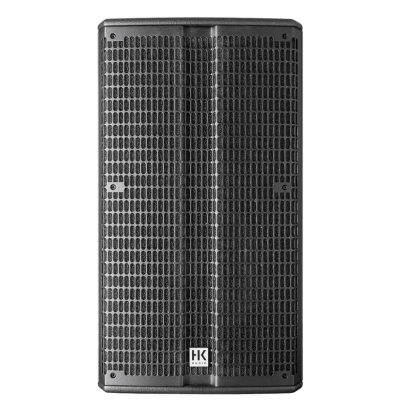

HK AUDIO Linear5 MK2 112FA
CHF1'349.00
HK AUDIO LINEAR 5 112FA
- Description
- Additional information
- Brand
Description
- Application: Mid/High unit, Stand Alone System
- 1000 Watt Class-D (650 W + 350 W, biamped)
- 12′ Speaker with 2,5′ voice coil
- 1′ Driver with 1,75′ voice coil
- 135 dB Max SPL Peak @ 10% THD (halfspace)
- Asymmetrical horn (60?-90? x 55?), rotatable
- Rugged hybrid (birch multiplex /MDF) housing
- 2 separate Inputs
- EQ switch (High Power/Small Venue)
| Model | L5 112 FA |
| Max SPL | 127 dB half space |
| Max SPL calculated | 137 dB half space |
| Max SPL peak | 135 dB half space |
| Cut-off Frequency active | 1,65 kHz, 24 dB/Oktave |
| Power Rating | 1000 Watt |
| Frequency response +/- 3 dB | 64 Hz – 18 kHz |
| Frequency response -10 dB | 57 Hz – 20 kHz |
| Sensitivity HF, 1W/1m | 110 dB full space / 116 dB half space |
| Sensitivity LF, 1W/1m | 98 dB full pace / 104 dB half space |
| Low/Midrange amplifier | 650 Watt @ 4 Ohm |
| HF Amplifier | 350 Watt @ 4 Ohm |
| Active protectiion circuits | Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection |
| Input Sensitivity | +4dBu @ Gain Centerclick / L5 System Level |
| Protection | Subsonic 24dB/Oktave, Peak Limiter |
| Connections | 2 x XLR- Combi IN, 2 x XLR-Thru, 1 x XLR-Mix Out |
| Low/ Mid Speaker | 12″ with 2,5″ voice coil (4 Ohm) |
| HF Driver | 1″ with 1,75″ voice coil (16 Ohm) |
| Horn characteristics | 60?- 90?(asy) x 55? CD Horn, rotatable |
| Equalizer | EQ switch Small Venue / High Power |
| Subsonic filter | yes |
| Peak limiter | yes |
| Amplifier | Class D – Biamped |
| Sensitivity switch | yes – Line/Mic Input A |
| Pole mount | Duo Tilt 3/7 |
| Rigging points | 3 x M8 |
| Handles | 2 integrated |
| Optional accessories | Protective cover |
| Enclosure | Hybrid (birch multiplex / MDF) |
| Grille | 2 mm metal grille backed with black acoustic foam |
| Finish | Acrylic enamel, black |
| Dimensions (WxHxD) | 37 x 66,8 x 36,5 cm |
| Weight | 23,9 kg / 52,7 lbs |
Additional information
| Weight | 27 kg |
|---|
