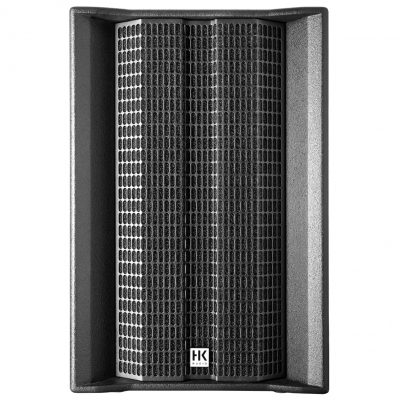

HK AUDIO LINEAR 5 LTS A
CHF1'690.00
HK AUDIO LINEAR 5 LTS A
- Description
- Additional information
- Brand
Description
??? ?Ultra compact long throw system
???? Economical (cost-performance ratio, saves truck space)
???? Innovative Multicell Transformer Technologie (MCT)
???? Coherent Wavefront Stacking
???? 1.000 Watt (650 W + 350 W, biamped)
???? 138 dB Halfspace
??? ?Made in Germany
| Max SPL calculated | 141 dB half space |
| Max SPL peak | 138 dB half space (@10% THD) |
| Max SPL | 133 dB half space (@10% THD) |
| Cut-off Frequency active | 1.7 kHz FIR X-Over with 48 dB/oct. |
| Power Rating | 1000 W |
| Frequency response +/- 3 dB | 115 Hz ? 14 kHz |
| Frequency response -10 dB | 100 Hz ? 20 kHz |
| Low/Midrange amplifier | 650 W @ 4 ohms |
| HF Amplifier | 350 W @ 4 ohms |
| Active protectiion circuits | Undervoltage Protection, Thermoprotection, Short Circuit Protection, Overcurrent Protection |
| Input Sensitivity | +4 dBu @ Gain Centerclick/L5 System Level |
| Protection | Subsonic 24 dB/Okt., Endstufen-Limiter, DSP-Input Limiter |
| Connections | XLR Combi In, XLR Thru |
| Mid/High Speaker | 3x 8″ (16 ohms) Neodymium |
| HF Driver | 1x 1″ (16 ohms) Neodymium |
| Horn characteristics | 60? x +5?/-25? MCT Horn |
| Amplifier | Class D Biamped |
| Power consumption | 3.3 A/230 V (Power Consumption Relating to EN60065 Directive) |
| Pole mount | MonoTilt 0? |
| Rigging points | 5x M8 |
| Handles | 2, Integrated |
| Optional accessories | Protective Transport Covers, Tilt Bracket, Tilt Bracket Head Stack Extension Pack, Cluster Plate (Pick Point), AP-8 Rigging Point |
| Enclosure | Birch Multiplex 15 mm |
| Grille | 2 mm Metal Grille with Black Acoustic Foam |
| Finish | Acrylic Enamel, Black |
| Dimensions (WxHxD) | 44 x 68 x 46,1 cm |
| Weight | 24,9 kg / 54,9 lbs. |
Additional information
| Weight | 27 kg |
|---|
