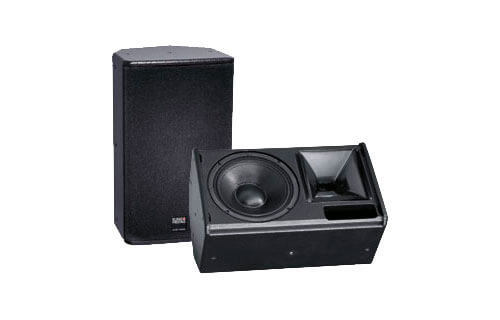

KLING + FREITAG CA 1001 SP
CHF4'005.00
KLING + FREITAG CA 1001 SP
- Description
- Additional information
- Brand
Description
K&F CA 1001
- 2-way full-range system with 10″ low-mid chassis / 1″ High frequency driver
- Rotatable 85? x 55? CD horn for precise coverage pattern
- Crossover with delay time and phase alignment for passive operations
- Max. SPL 124 dB (Peak / 1 m)
| Design | 2-way passive-system, bass reflex tuning |
| Frequency response -10 dB | 53?Hz -?20 kHz |
| Frequency response ?3 dB | 82?Hz -?19 kHz |
| Nominal Coverage angles | 85? x 55? ?(hor. x ?vert.) |
| Directivity index (DI) | 10 (+1,5/-1)?1,2 kHz -?14 kHz |
| Power handling | 250 watt r.m.s. |
| Sensitivity 1 W/1 m | 96 dB |
| Max SPL | 124 dB (SPL peak / 1 m) |
| Components | 10″ low-mid chassis 1″ high frequency driver with 45 mm Titanium diaphragm |
| Crossover | 2-way crossover with delay time and phase alignment, self-resetting protection circuit for low and high frequency path |
| Impedance | 6 ohms, Zmin. 4.8 ohms |
| Connectors | 2 x Speakon NL4MP (1+/1-) |
| Enclosure | Multi-functional enclosure with 54? monitor angle, 15 mm birch plywood with highly resistant finish in black or white, 1 ergonomic handle, 5 x M10 an 2 x M8 thread inserts, ball-proof front grille with black acoustic foam covering |
| Dimensions | 313?x?520 x?307 mm (W x H x D) |
| Weight | 18.3?kg |
| Colour | black (RAL 9005) or white (RAL 9010) |
| Options | ‘AS’, axial symmetrical version, ‘100 Volt’ with 300 VA toroidal transformer (20.9 kg), ‘barrier strip’ instead of Speakon connectors, ‘Outdoor Mobile’, ‘Outdoor Installation’, ‘special finish with RAL colours’ |
Additional information
| Weight | 20 kg |
|---|
