Description

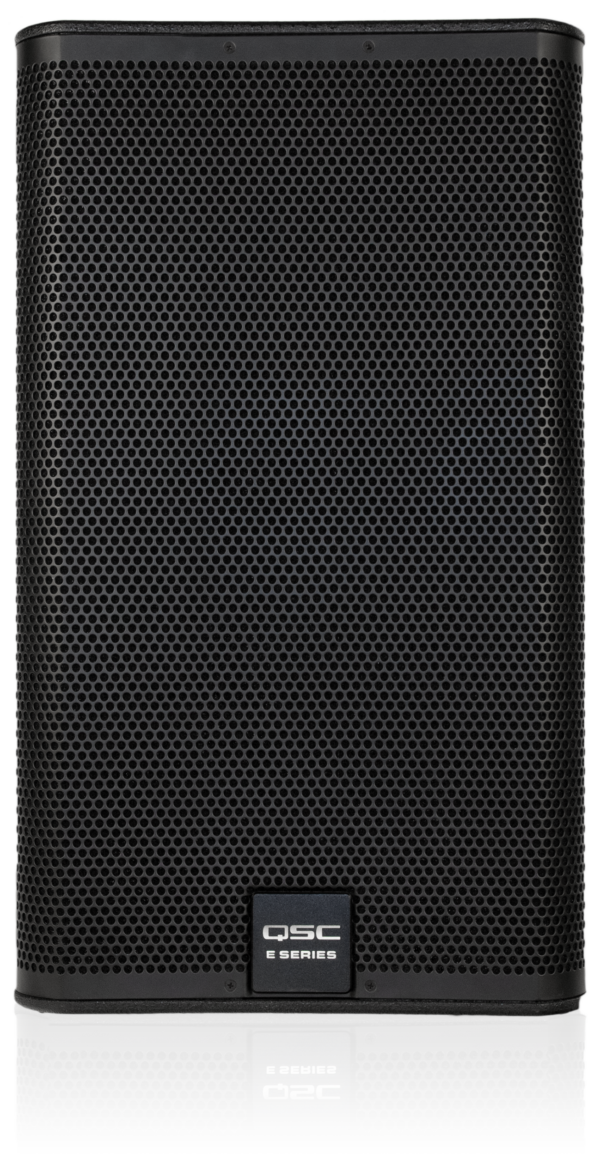

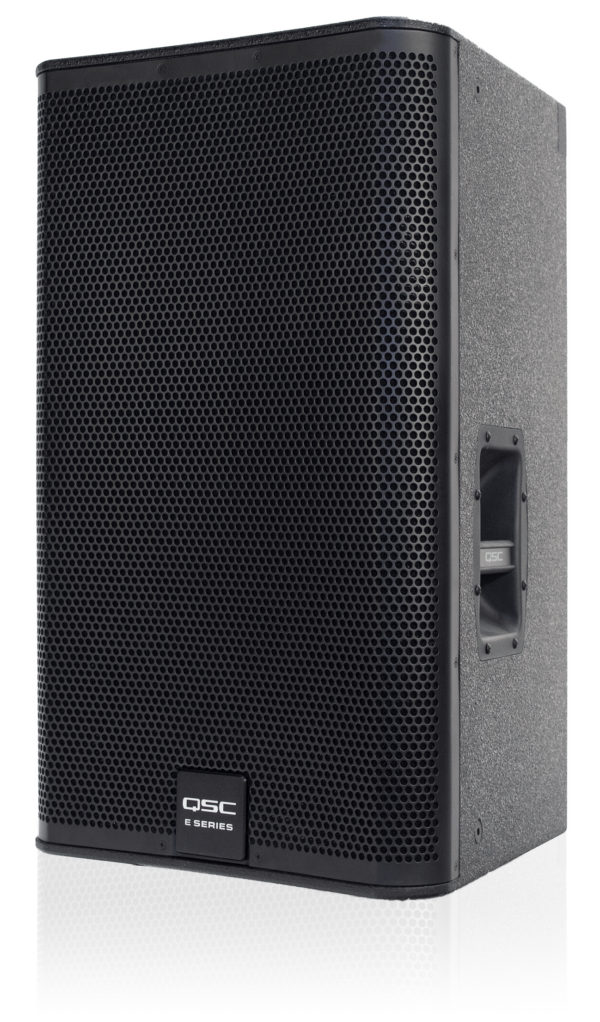

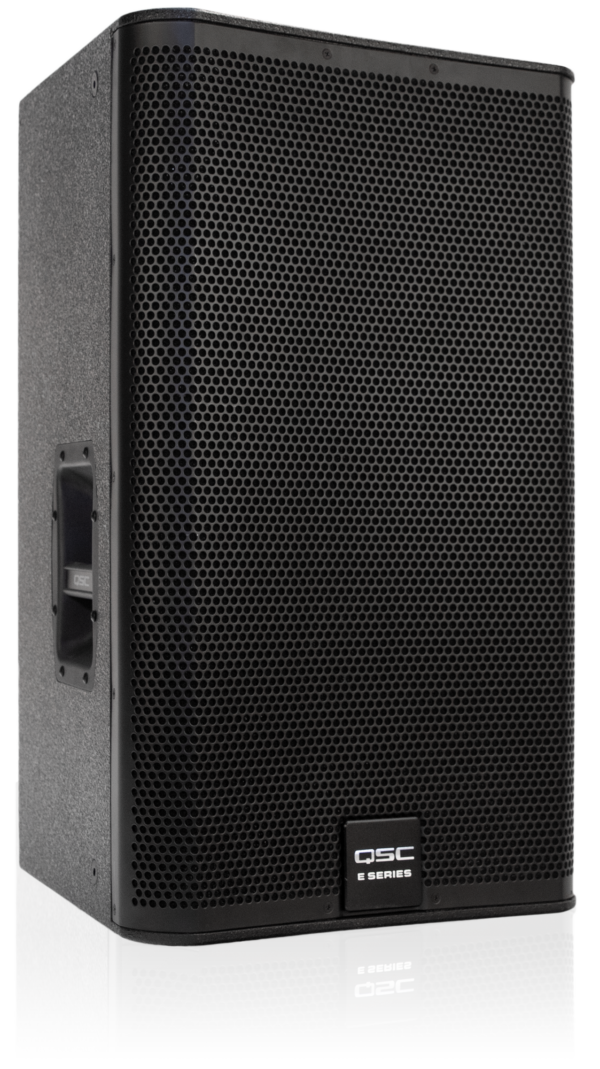

The E115 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8? compression driver attached to the 75? DMTTM waveguide assures that even distant listeners will be well covered.
E Series loudspeakers will perform very well with any quality, professional power amplifier ? but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today?s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features
- High output, professional quality sound with E115 ? 500 W continuous power
- E Series Entertainment System ? Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
– For PLD/CXD visit Amplifier Navigator Software
– For GXD visit the GXD Firmware Updater
- Titanium diaphragm for high fidelity and long life
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Available U-Style Yoke and M8 rigging kit for permanent installation
- Dual angle pole socket
| Model | E115 |
| Configuration | 1 x 15-inch, 2-way, non-powered |
| Frequency Response (-6 dB) | 55 Hz ? 20 kHz |
| Frequency Range?(-10 dB) | 43 Hz ? 20 kHz |
| Power capacity1: continuous/peak | 500 W / 2000 W |
| Sensitivity | ?97 dB, 1 W @ 1 m |
| Coverage Angle | 75??conical DMT |
| Output2?(peak SPL @ 1 m) | 130 dB |
| Drivers
LF HF |
381 mm (15-inch) driver with 89 mm (3.5-inch) voice coil 38 mm (1.5-inch) exit, 71 mm (2.8-inch) voice coil, compression?driver |
| Nominal Impedance | 8? |
| Cross-over | Full-range only 1.55 kHz |

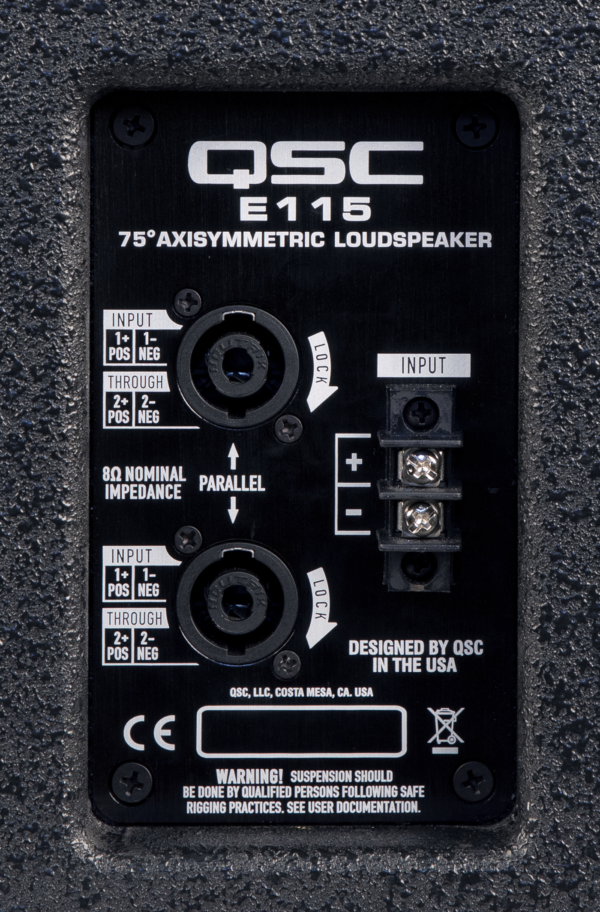

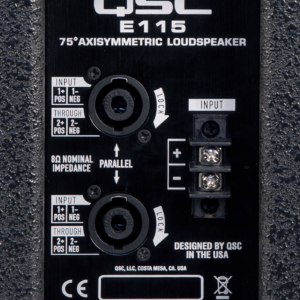

| Input connectors | ?2 x NL4, 1 x barrier strip |
| Enclosure | ?Trapezoidal, plywood, black texture paint finish. Two side-mounted handles, Perforated, powder-coated steel grille with foam lining. |
| Dimensions (WxHxD) |
16.5 x 28.2 x 17.5 in
420 x 716 x 445 mm |
| Net weight | 31 kg / 68 lb |
| Shipping weight | 34 kg / 75 lb |
1 Power that the device can withstand for two hours without permanent change in acoustical, mechanical, or electrical characteristics, greater than 10%, using IEC60268 noise based on nominal impedance in the cabinet with Xover, full range 30 Hz 12 dB/oct.
2 With QSC Processing
*Specifications are subject to change without notice.
