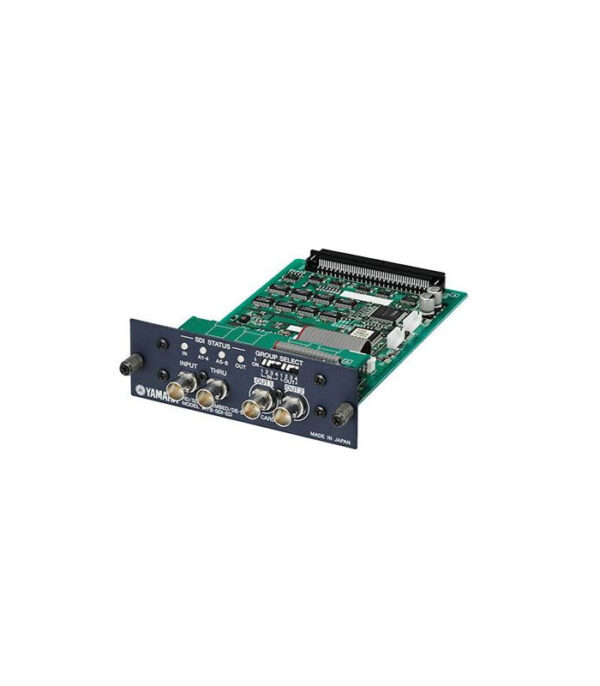

YAMAHA HD/SD-SDI EMBED/DE-EMB* MY8-SDI-ED
CHF4'562.00
YAMAHA HD/SD-SDI EMBED/DE-EMB* MY8-SDI-ED
- Description
- Additional information
- Brand
Description
1 x HD/SD-SDI Input,2 x HD/SDI Output(same signal)
– Able to de-embed up to two of the 4 audio groups (4 channels per group;total 8 channels)multiplexed in a HD-SDI signal
– Able to embed 2 audio groups into an HD/SD-SDI signal for output
– LED audio status display
Features
- HD-/SD-SDI embed/de-embed card
- Capable to de-embed two of the 4 audio groups out of an HD-SDI signal to the console
- Capable to embed two audio groups into an HD-/SD-SDI signal for output
- 2x BNC Connectors for HD-/SD-SDI output (parallel), 1x BNC connector for Thru, and 1x BNC connector for HD-SDI input
Specifications
| HD-SDI/SD-SDI I/O CHARACTERISTICS | |
|---|---|
| HD-SDI I/O Signal | SMPTE 292M (1.485 Gbps, 1.485/1.001 Gbps) |
| SD-SDI I/O Signal | SMPTE 259M-C (270 Mbps) |
| Resolution | 24 bit |
| Frequency | 48 kHz |
| Impedance | 75 ? |
| Connector | Input: 1 x BNC Output: 2 x BNC (same signal) |
| Lines | Selected 2 audio groups of 4 channels; total 8 channels |
| HD-SDI/SD-SDI THRU OUTPUT CHARACTERISTICS | |
|---|---|
| SDI Output Signal | Reclocked thru output |
| Impedance | 75 ? |
| Connector | 1 x BNC |
Additional information
| Weight | 0.5 kg |
|---|
